Horizontal Breathing Air Gas & Diesel Engine Compressor (HBA)

Product Code: N/A
Availability:in stock

Request a Quote

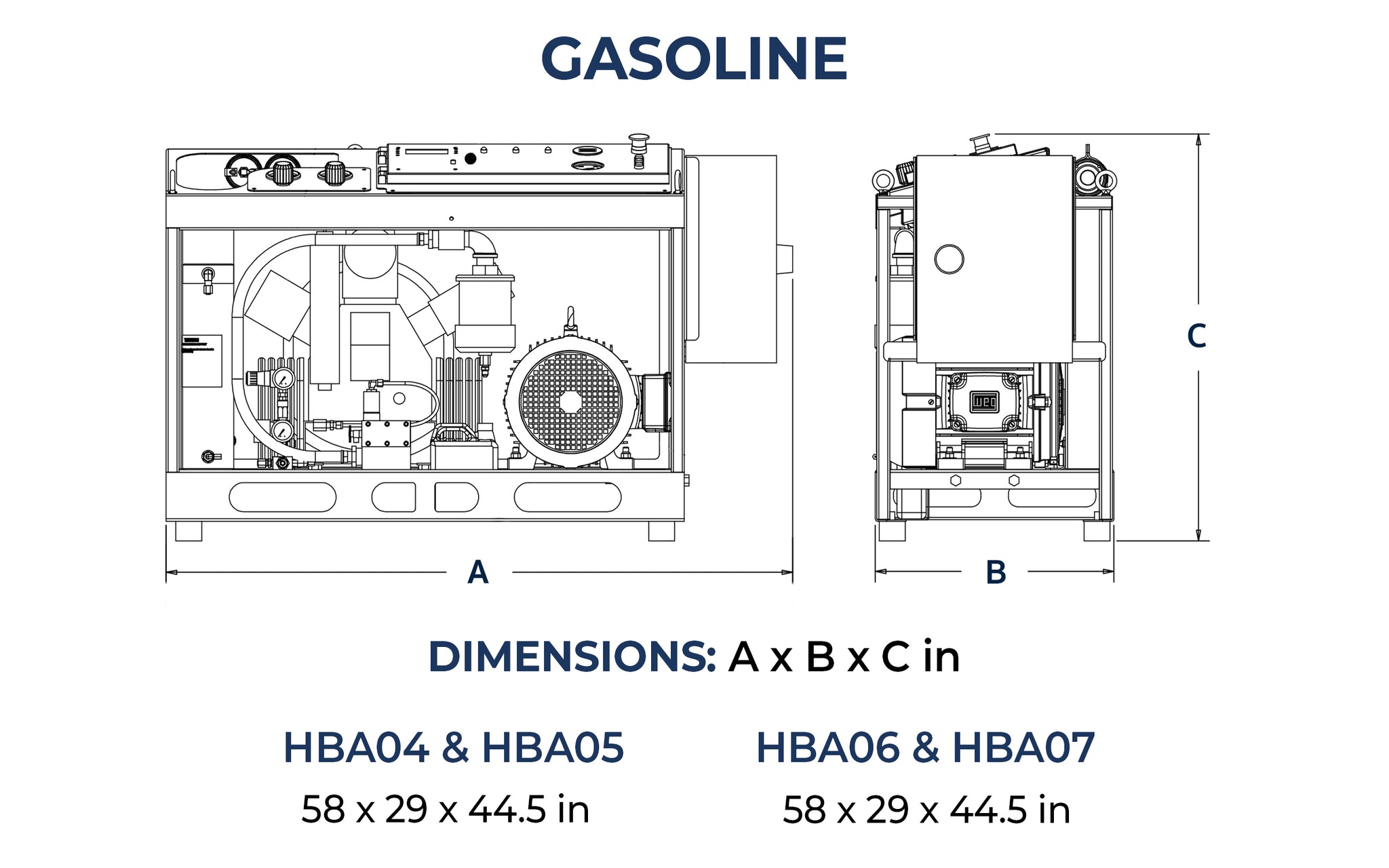

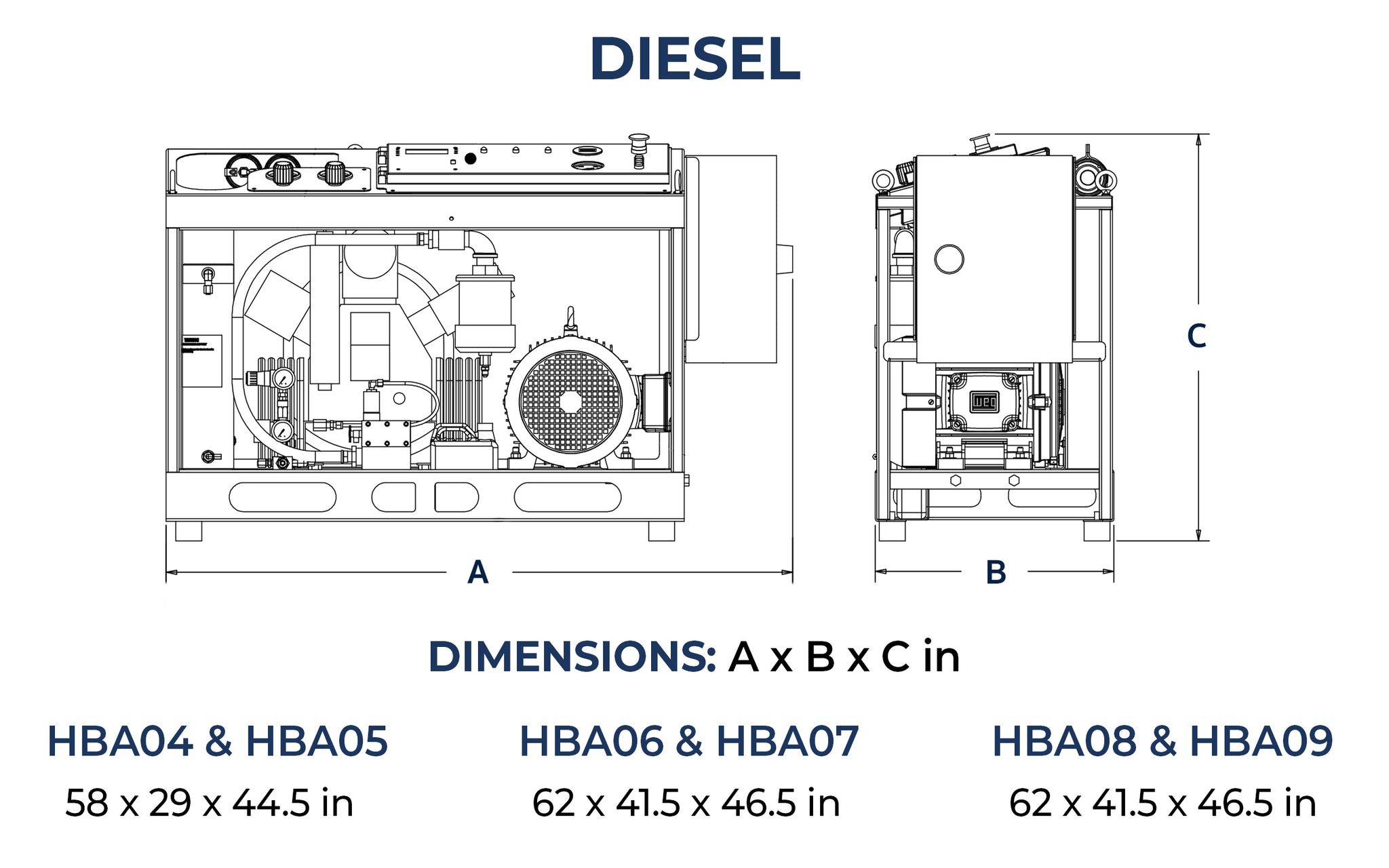

The open-frame Horizontal Breathing Air compressor from MAKO offers all the hallmark features of our renowned designs, tailored for smaller spaces and tighter budgets. Available in 8 hp, 11 hp, and 20 hp configurations for gas engines, and 10 hp, 23.5 hp, and 26.7 hp for diesel engines, this compressor is versatile and powerful. Its open design and rugged structural steel frame, finished with a heavy-duty powder coat, ensure durability and reliability in any environment.

Standard Installed Features:

  • Inlet Filter
  • Intercooler & Aftercooler
  • V-Belt Drive with Guard
  • NEMA Design ODP Motor (Non CE Marked)
  • IP55 TEFC 50 Hz. Motor (CE Marked)
  • Gauge Panel
  • Emergency Stop Button
  • Air Switch - Engine Shutdown
  • Shutdown Light Package (High Temp., Low Oil, Air Switch)
  • Structural Steel Frame
  • Interstage & Final Stage Relief Valves
  • Low Oil Pressure Switch (Pressure Lubricated Units Only)
  • Low Oil Level Switch (Splash Lubricated Units Only)
  • High Air Temperature Switch
  • Starter (12V Electric); Battery NOT Included
  • Control Transformer
  • Auto Drain
  • Auto Drain Muffler/Reservoir
  • Visual CO/Moisture Indicator Siteglass
  • Belt Adjustment Slide Base
  • NEMA 12 (N12) Control Panel (UL 1450)

**Low Oil Switch is Required to Meet NFPA 1989: 2013 Standards

**HBA04 and HBA05 Gas and Diesel Units are not intended for use onboard fire apparatus or trailer packages for the fire market, due to NFPA Guideline restrictions.

**HBA05X is limited to 250 hrs. of run time per year. Use only to fill SCBA/SCUBA bottles.
