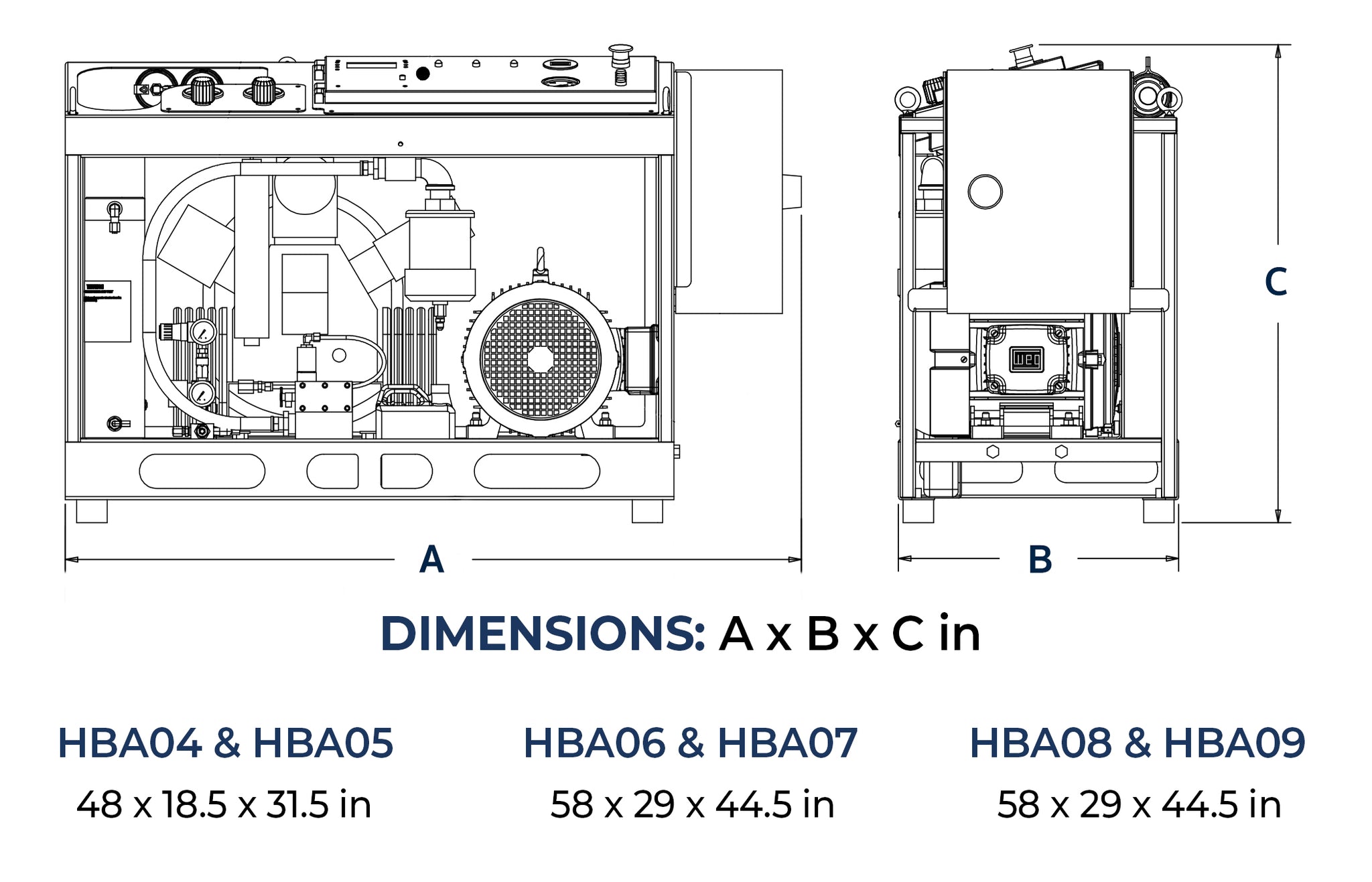

Horizontal Breathing Air Electric Compressor (HBA)
The open-frame Horizontal Breathing Air Compressor from MAKO offers all the hallmark features of our renowned designs, tailored for smaller spaces and tighter budgets. Available in 5 hp, 7.5 hp, and 10 hp, 15 hp, 20 hp, 25 hp configurations for electric engines, this compressor is versatile and powerful. Its open design and rugged structural steel frame, finished with a heavy-duty powder coat, ensure durability and reliability in any environment.
Standard Installed Features:
- Inlet Filter
- Intercooler & Aftercooler
- V-Belt Drive with Guard
- NEMA Design ODP Motor (Non CE Marked)
- IP55 TEFC 50 Hz. Motor (CE Marked)
- Gauge Panel
- Hour Meter
- Emergency Stop Button
- Auto Start/Stop Air Pressure Switch
- Shutdown Light Package (High Temp., Low Oil, Air Switch)
- Structural Steel Frame
- Interstage & Final Stage Relief Valves
- Low Oil Pressure Switch (Pressure Lubricated Units Only)
- Low Oil Level Switch (Splash Lubricated Units Only)
- High Air Temperature Switch
- Overtime Timer
- Starter
- Control Transformer
- Auto Drain
- Auto Drain Muffler/Reservoir
- Visual CO/Moisture Indicator Siteglass
- Belt Adjustment Slide Base
Notes:
**10 HP Single Phase Units are available in 60 Hz. ONLY
**Low oil level switch is required to meet NFPA 1989: 2013 Standards
**HBA05X is limited to 250 hrs. of run time per year. Use only to fill SCBA/SCUBA bottles.
