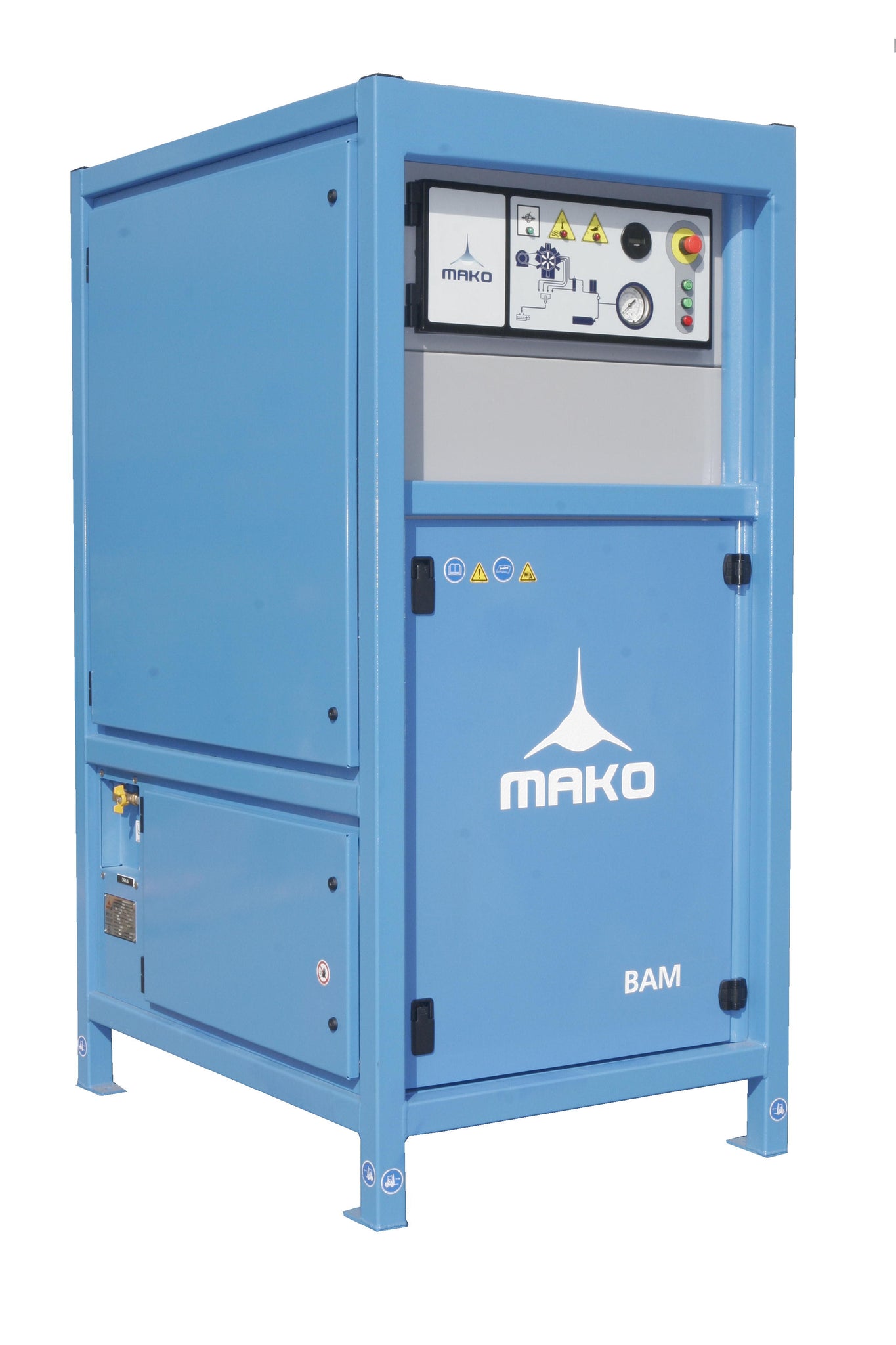

Breathing Air Module (BAM)

Product Code: N/A
Availability:in stock

Request a Quote

Designed for seamless installation against a wall, the Breathing Air Module offers unparalleled value and peace of mind. Its innovative design includes five hinged maintenance inspection doors, providing superior access to all components for effortless maintenance and servicing. Equipped with industrial duty 3 and 4 stage compressor blocks, it comes available in 5 HP, 7.5 HP, 10 Hp, 15 HP, 20 HP, and 25 HP options. Whether you require a compact 5 HP unit or a powerful 25 HP system, the Breathing Air Module is designed to meet your specific needs, making it the ideal choice for a wide range of applications.

Standard Installed Features:

  • Inlet Filter
  • Intercooler & Aftercooler
  • V-Belt Drive with Guard
  • NEMA Design ODP Motor (Non CE Marked)
  • IP55 TEFC 50 Hz. Motor (CE Marked)
  • Gauge Panel
  • Hour Meter
  • Emergency Stop Button
  • Shutdown Light Package (High Temp., Low Oil, Air Switch)
  • Interstage & Final Stage Relief Valves
  • High Temp Switch
  • Overtime Timer
  • Control Transformer
  • Auto Drain
  • Auto Drain Muffler/Resevoir
  • Visual CO/Moisture Indicator Siteglass
  • Auto Start/Stop Air Pressure Switch
  • NEMA 12 (N12) Control Panel (UL 1450)
  • Carbon Monoxide (CO) and Moisture Monitors are available

All our systems are manufactured to comply with the latest NFPA standards, ensuring safety and reliability.
